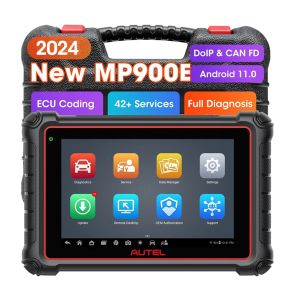

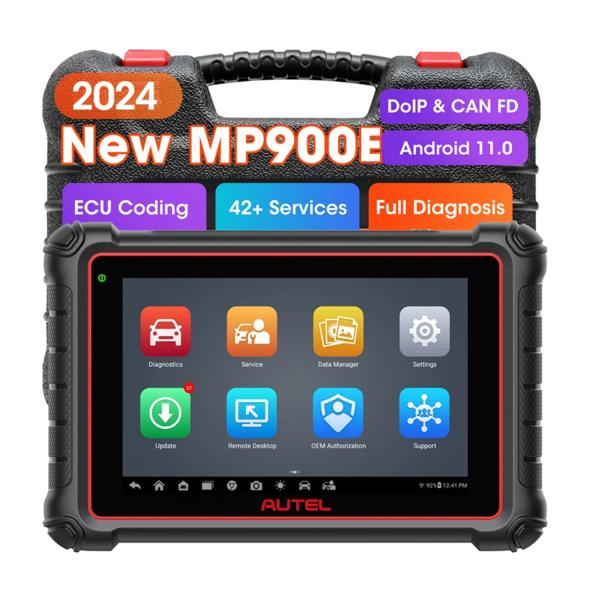

Autel MaxiPRO MP900E OBD2 Scanner Diagnostic Tools 2024 Newer of MP808S MP808BT PRO

This Autel 2024 newly-launched MaxiPro MP900E is designed to reinvent the concept of what a scan tool should do for a technician, featuring an OE-level software platform that economizes the modern technician’s time while delivering accuracy of identifying. It will bring you the confidence to repair any car faults you would meet.

[Advanced ECU Coding] Operate with a menu-guided procedure to flash, calibration, rematch, recode, reset, relearn, etc. NO time-consuming process.

[40+ Common Service Functions] Cover almost all basic, special, and many advanced functions that can handle 99% of daily car maintenance in busy workshops.

[All System Diagnostics] Scan all available on-board ECUs & modules, directly get to the fix and eliminate guesswork.

[Active Tests] Bi-directional control of relays, injectors, coils, solenoids, valves, actuators, etc. for testing without manual control; deliver fast results in 5 minutes.

[99% Worldwide Car Coverage] Provide the latest OE-level coverage for 10,000+ models from US domestic, Asian, and European, including supercars.

[Fresh Hidden Features] Open and close the features that have been set up by the manufacturer. Customize car features to personalize your car.

[DoIP & CAN-FD Protocol] Compatible with new protocols to support the vehicles of today and tomorrow. There is no need to buy specialized adaptors. See compatible car list on page.

[Smart AutoVIN & Scan] 3X faster AutoVIN recognition for quick vehicle identification; builds all system communication and detects system malfunction in seconds.

[Guided Functions] Easy-to-follow instructions take you from initial procedure to successful diagnostic access to VAG group & ManLD vehicles.

[Autel Cloud-based Report] Report Management can view, save, print, and share reports on phones, tablets, and computer browsers.

[Expand Features] Thorough battery testing with BT506; Endoscope with MV105S.

[One-touch Software Upgrades] Keep upgrading for more supported cars and more features; subscription-free for 1 year, saving you 300 bucks renewal fees.

ECU Coding - Solutions of Complex ECU Repairs

Autel MaxiPRO MP900 features the advanced ECU coding that is usually seen on Autel’s over 1000-bucks value diagnostic scanners. With it, you can address the following issues:

Recognize new CPU replacement to make it match the current settings of your vehicle.

Make adaptive data for specific components after repairs are made, providing ways to solve major car issues.

Make the car customized to your own tastes (Personalization, Fresh Hidden Functions). The applications could be: recode your lighting setting, which includes changing the brightness levels or even the indicator flashing intervals; set optical or acoustic signals on the vehicle and different warning signals, such as a seat belt reminder. In addition, close some functions that you probably won't need like the auto star-t & sto-p system.

There are 2 operating options tailored to your specific needs:

[Online Coding] Autel online servers will send coding values in automatic for a quick and precise procedure. This was developed as a smart coding solution that can be used by any technician or shop regardless of experience.

Compatible with Nissan, Infiniti, NissanGT-R, Renault, Hyundai, Kia, V-W, V-W_Brazil, BM.W, MINI, Peugeot, Citroen, DS_EU, Porsche, SGMW …

[Offline Coding] You can manually input coding values for more customized builds.

Compatible with Infiniti, NissanGT-R, Toyota, Lexus, Scion, Daihatsu, Be.nz, Maybach, LandRover, Jaguar, Subaru, Fo.rd, Fo.rd-AU, Fo.rd-EU, Mazda, Hyundai, Kia, Chrysler, Au.di, V-W, Skoda, V.W_Brazil, Bentley, Bugatti, Lamborghini, LT3, Seat, V.W_CV, Man_LD, Peugeot, Citroen, DS_EU, Opel, Vauxhall, Porsche, Mitsubishi …

[REMINDER] Available coding operations vary by the test vehicle. ONLY the available operations will display in the menu.

Bi-directional Active Test: Troubleshooting in A Blink

Autel MP900E is a fully-featured bidirectional scan tool. This means you can send the command to the ECU and receive a response without using the vehicle’s control. It will save you loads of repair time without tearing the vehicle part to pinpoint the fault areas.

The applications may include: EVAP Test / VTEC Test / ETCS (TAC) Test / Radiator FAN / A/C Clutch / Flue Pump ON/OFF / All Injectors Stop / One Injector Stop / Cruise Control Cancel History / VTC Test / Cylinder Cranking Speed Variation Test / Idle Stop Starter Counter Check / Cylinder AF Test / DI Fuel Pressure Test / Activation A/C Compressor / EGR cooler pump / EGR cooler switch-over value / EGR vacuum regulator Solen.val. / Exhaust turbocharger 1 / Fan 1 control circuit / Fuel pump electronics / Glow time control module 1 / Relay for reserve coolant pump / Throttle valve control unit.

[REMINDER] The options programmed into the vehicle will determine the range of options available.

40 HOT Service Functions: Daily Repairs Never Be So Easier

Oil Reset Service

Performs reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate, and turns off the warning light;

Electronic Parking Brake (EPB) Service

Maintains the electronic braking system safely and effectively through deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.

Steering Angle Sensor (SAS) Service

Performs calibration for the Steering Angle Sensor (SAS), which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. On successful completion of the calibration, the steering angle sensor fault memory is automatically cleared.

Tire Pressure Monitor System (TPMS) Service

The TPMS service function include displaying sensor IDs from the vehicle’s ECU, inputting TPMS sensor replacement IDs and testing sensors

DPF Service

carry out numerous functions to the Diesel Particulate Filter system. The tool will manage DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

BMS Reset

Re-match the control module and motoring sensor for battery detecting more accurately, clear original low battery information and prevent the related control module from detecting false information.

IMMO Service

enables you to disable the lost vehicle keys and program a replacement key fob.

ABS Bleeding

ABS brake bleeding to get a firm brake pad after air exhaustion.

Throttle Matching

to initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately

Injector Coding

to make the cylinder better identify injector after ECU or injector is replaced.

Suspension

Seats

Lang Change

Trans adaption

TEC learn

Headlamp

CHG Tire Size

WIN DR ROOF

......

[REMINDER] Available operations vary by the test vehicle. Discover more resets & relearns in specific car software.

Guided Functions (VAG & ManLD)

Are you having trouble finding the correct Security Access Code and Channel Number for Aud.i, Volks-wagen, Skoda, Seat, or ManLD vehicles? Look no further than this Autel scanner’s “Guided Function” to streamline the process. With it, you can easily navigate the steps required for matching, calibration, and basic settings on VAG Group & ManLD vehicles by simply following the provided guidance.

Pre- & Post Scan Report

The “Pre-Scan Report” can identify any potential problems with the vehicle before any repairs are made. This can help to prevent unnecessary repairs and reduce the risk of further damage to the vehicle.

The “Post-Scan Report” can verify that the repairs have been made correctly and that all issues have been resolved. This will back you with evidence if anything wrong happens to the car while repairing.

AutoVIN & Scan VIN/License

For quick vehicle identification, you can use AutoVin / Code Scan (scan VIN barcode or driving license with camera) to read the vehicle identification number for fast access to the diagnostic. Note that this technology doesn't work on all vehicles. You can tap the Manual Input option to input the Vin Number and access the diagnostic menu.

Autel Cloud Report Manament

Save the diagnostic reports to the Autel cloud and share them via QR codes, e-mails, text messages, etc. This way, your customers can view reports on their phones, tablets, and computers at any time and understand the current issues at hand.

Wireless Wi-Fi Printing

You can easily print the diagnostic reports wirelessly from your Autel MaxiPro MP900 via a Wi-Fi printer. You don’t need to make a connection with a computer for printing the diagnostic report.

Expand Features with Tools

Pair with MV105S/MV108S - have close-up inspection in hard-to-access areas. (sold separately)

Pair with BT506 - get effective vehicle battery system analysis. (sold separately)

Full System Diagnostics with Bi-directional Control

Autel MP900E can access to ALL vehicle systems and subsystems, such asBody, Chassis, Powertrain, Networkand etc., to perform a comprehensive scanning on ECUs to locate fault systems and retrieve DTCs.
1. To diagnoseBrake Systemif you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation;
2. To diagnoseEmission Systemif the system is affected by vehicle age or poor quality fuel. A good emission system reduces harmful gases to a large degree and protects you from being fined;
3. To diagnoseFuel systemif vehicle won’t start or “Check Engine” light is illuminated. Check car’s fuel system regularly ensures the best performance of your car with the lowest emissions;
4. To diagnoseTransmissionif your car is slipping or difficult to shift. The system plays an important part in the overall performance of your car;
5. To diagnoseWiper Systemif you observe chattering or streaking wiper. If the car is not regularly checked, the accident might happen because you can’t see clearly;
6. To diagnoseLight Systemif you see rapid signal blinking or dimming lights.
And many more ...

Supported Languages

English, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian,Turkish, Arabic, Thai
( Please tell us about your S/Nof machine to activate the language you need after you get it. Thanks~)

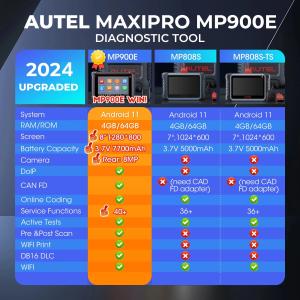

Superior Combination of Hardware & Software

[Android 11.0 Operating System] Autel MP900 incorporates this U.S. most-popular operating system, previously only be seen in flagship scan tools. You can launch apps 20% faster than before.

[4-Core, 1.8GHz Processor] You can experience 5X faster task scheduling and improved system fluency. Its lower power consumption can effectively improve battery life.

[8”, 1280*800 Touchscreen] It is highly responsive to your input, and will show all the test results, diagnostic data clearly even in poor conditions.

[4G+64G ROM & RAM] Thanks to the massive internal memory, you can keep all of your client’s info, and have an easy time diagnosing their vehicles every time they visit. Also, you add more files for future use.

[7700mAh Battery] Unlike other diagnostic tools which have a problem with the battery life, you will enjoy up to 12 hours of uninterrupted operation.

[Rear 8MP Camera] The powerful 8-megapixel rear camera equipped with autofocusing capabilities and flashlight will help you get crystal clear shots.

[NEW! Screen Cast] You can project this Autel scanner's screen onto another device, display and share the scanner's interface and data in real-time on a larger screen such as a computer.

1 Year Software Update Included in Package

The most groundbreaking about the Autel MP900 is its staying up-to-date with the unpredictable market. The updates are subscription-free for 1 year, which include:

Package List

1* MaxiPro MP900E
1* Power Adapter
1* Main Cable
1* User Manual
1* Packing Lite
1*USB Type-C cable
1*Carry Case
1*Soft Cloth
