Autel MaxiCOM MK906Pro

2024 Professional All-in-One Diagnostic Scanner

MaxiCOM MK906PRO is the latest addition to the MaxiCOM product line of advanced wireless diagnostic devices. The device is based on the Android operating system featured with the best possible coverage of OE-level diagnostics and ECU coding capability. Utilizing the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), an 8” capacitive HD touch screen, and long-distance wireless communication, the MaxiCOM MK906BPRO efficiently provides comprehensive vehicle diagnostics and analysis.

Newest Service Function Release - VIN/Odometer Check

• Adds "VIN/Odometer Check" feature, which supports reading the mileage and Vehicle Identification Number (VIN) values stored in various control units of the vehicle.

Bullet Points

1.2024 New Scanner, Autel MK906 Pro
2.ECU Coding Function, Same as MaxiSys MS908
3.36+ Service Functions, All is Prepared
4.Active Test, Trouble Finder
5.DoIP,CAN FD Supported
6.New Functions, Add Practicality:
2024 new added functions enrich capacities of this Autel diagnostic scan tool like Cloud-based Report Manager for well-organized data management, VAG Guided Functions for easing diagnostic process, WiFi Printing, and Working with Videoscope & Oscilloscope(MV105/BT506/MP408).

■ Full-System Diagnostic

By penetrating all available ECUs, including but not limited to PCM, ECM, EPS, PDM, TPM, BCM, ABS, SCCM, etc., MK906Pro retrieves information and performs OE-level diagnostics on all available vehicle systems, like read and clear codes, view data stream and vehicle information, ECU Replacement, Zero Point Calibration (Toyota), Signal Check (Toyota), Initialization (ECU), and Guided Function (VAG). It not only enables you to troubleshoot promptly but also makes you customize the configuration.

■ Active Test

By passing the electronic control module and communicating directly with the control unit is an efficient diagnosis method. The MK906BT car scanner can perform active tests to check the vehicle’s running states by receiving information from ECUs or by monitoring actuators (e.g., switching solenoids, relays, or on-off between two operations) to control the system or parts (e.g., ABS, windows, doors, roof).

■ Auto VIN

Just one click can facilitate the vehicle diagnostic process. MK906PRO scanner tool incorporates the latest Auto VIN technology that allows technicians or repairmen to easily identify vehicle information such as manufacturer, model, year and place of manufacture, etc.

■ Guided Functions

save your manual input of the Security Access Code & Channel Number for successful matching/calibration; and to make basic settings. Compatible with VW, Audi, Skoda, Seat …

■ Report Pre & Post Scan

Pre & Post Scan function is now available on the MK906 Pro car scanner. It will clearly record the vehicle status before and after the diagnostics, which can facilitate the mechanic to know the problems and develop a suitable repair plan, and also let the customer know the repair project and cost. The Pre & Post reports can be saved, printed, or mailed to the customers.

■ Report Management & Printing

Autel MK906 Pro bi-directional scanner could provide cloud-based solutions to keep all the reports in order. All diagnostic reports generated by the MK906 Pro diagnostic tool can be saved to the cloud for a long time and shared with your customers via QR codes, emails, text messages, etc. Of course, you can also download and print these reports via WiFi quickly and easily.

■ Newly Extended Functions

Same as MK908 & MK908 Pro auto scanners, Autel MK906 Pro can work with extended tools (sold separately) to enlarge diagnostic accuracy. Videoscope(MV105/MV108): Check the hard-to-reach areas like fuel pump and engine; Oscilloscope(MP408): Monitor various electrical system activities like the voltage, current, frequency, etc; Battery Tester(BT608): check the battery health status.

■ ECU Coding: Customize the Vehicle Setting, Same As the Autel MS908

ECU Coding function is becoming increasingly practical in automotive repair. Same as MS908 / MK908, this Autel MaxiCOM MK906 Pro features this magic ECU Coding applied to ECU matching/code modification/functions activating/improving vehicle performance. This function can help technicians solve more problems & get more profits and meet customer’s needs.

Matching: Replace the ECU Modules
√ Online Coding: enable you to access the online data from the OEM server to reprogram adaptive data for high-level vehicles. Compatible with BMW, VW, Porsche, etc.
√Offline Coding: read the code from the original module, and then write it into the new module. Compatible with Ford, Mazda, Vauxhall, etc.

Modification: Customize Your Own Car
√Disable some unneeded functions: Such as deactivating the auto start-stop / changing the chimes / deactivating injector buzz sounds / deactivating seatbelt warning sounds / etc. Compatible with BMW, VW, Benz, etc.
√Reflash High-end Functions: Such as auto start-stop / customizing interior lights / changing US-style daytime running lights / mirrors automatically folding and unfolding / activating cornering headlights with fog lights / etc. Compatible with BMW, VW, Skoda, etc.

■ 36+ HOT Service Functions for 99% Brands in the Market

Aside from the typical functions that you might expect such as oil reset, there are plenty of others that are great additions to escaner automotriz professional MK906 Pro. You can complete 99% repairs and general maintenance using dealership-level relearn procedures. Check out the following list:

Oil Light Reset: reset the oil service lamp after changing the engine oil; re-calculate the optimal oil life change interval.Steering Angle Reset: reset the steering angle to zero to keep the car running straight.
Injector Coding: write the new injector code into the car system for the correct cylinder injection quantity.
Electronic Parking Brake Reset: help replace and reset the brake pad.
ABS Bleeding: help exhaust the air in ABS in an easy way.
Throttle Adaptation: initialize the throttle actuators to the default state.
Battery Matching: register the battery after replacement.
DPF Regeneration: help remove the particulate matter to keep the trap stable.
Tire Pressure Reset: reset the tire pressure.
Suspension Level Calibration: adjust the vehicle body height sensor for level calibration.
Headlight Matching: initialize the adaptive headlamp system.
Gearbox Matching: help complete the gearbox self-learning to improve gear shifting quality.
Sunroof Initialization: initialize the sunroof when to be locked off, or closed.
Tooth Learning: help to finish tooth learning after changing the crankshaft in the car engine.
And many more. The new service functions keep rolling out from Autel, including expanded coverage for the latest vehicle makes and models.

Note: 1) Timely updating will develop more functions; 2) Functions vary by the model.

You can message the VIN code to us to check the compatibility.

■ Language

English, Simplified Chinese, Traditional Chinese, Spanish, French, German, Polish, Italian, Japanese, Korean, Dutch, Portuguese, Swedish, Russian

After you get the product, please tell us your SN of machine to activate the language you need .

■ Wide Coverage

No need to worry about compatibility issues. The device currently supports 80+ car manufacturers and 140+ car brands worldwide. Also, you will be able to get more new car models through subsequent high-frequency software updates.

It is compatible with:
For Chrysler, Dodge, For Ford, For GM, For Jeep, For Abarth, For Alfa, For Citroen, For Fiat, For Lancia, For Opel, For Peugeot, For Porsche, For Renault, For Saab, For Vauxhall, For Volvo, For Aston Martin, For Audi, Bentley, For Benz, For Sprinter, For BMW, For Bugatti, For Ferrari, For Jaguar, For Lamborghini, For Land Rover, For Maserati, For Maybach, For Mini, For Rolls-Royce, For Seat, For Skoda, For Smart, For VW, For VW CV, For Dacia, For Ford EU, For LT3, For Acura, For Daewoo, For Daihatsu, For Honda, For Hyundai, For Hyundai CV, For Infiniti, For Kia, For Lexus, For Maruti Suzuki, For Mazda, For Mitsubishi, For Nissan, For Nissan GTR, For Samsung, For Scion, For Ssang Yong, For Subaru, For Suzuki, For Toyota, For Isuzu, For Mahindra, For Perodua, For Proton, For T-A-T-A, For HINO, For UD,For Fuso.

These software need to pay extra money to buy:
Brazil car/Latin America car/South American car:Fiat Brazil,GM Brazil

■ MK906PRO Specifications

Operating System:Android™ 10
Processor:Octa-core processor (2.2 GHz Qual highperformance Kryo cores + 1.8 GHz Qual lowpower Kryo cores)
Memory:4 GB RAM & 128 GB ROM
Display:8.0-inch TFT-LED capacitive touch screen with 1920 x 1200 P resolution
ConnectivityWi-Fi (802.11 b/g/n)USB: 2.0, Mini USB 2.0Wireless BT V2.1+EDR Class1, HDMISD Card (support up to 32 GB)
Camera (rear)Rear: 16 megapixel, autofocus with flashlightFront: 16 megapixel

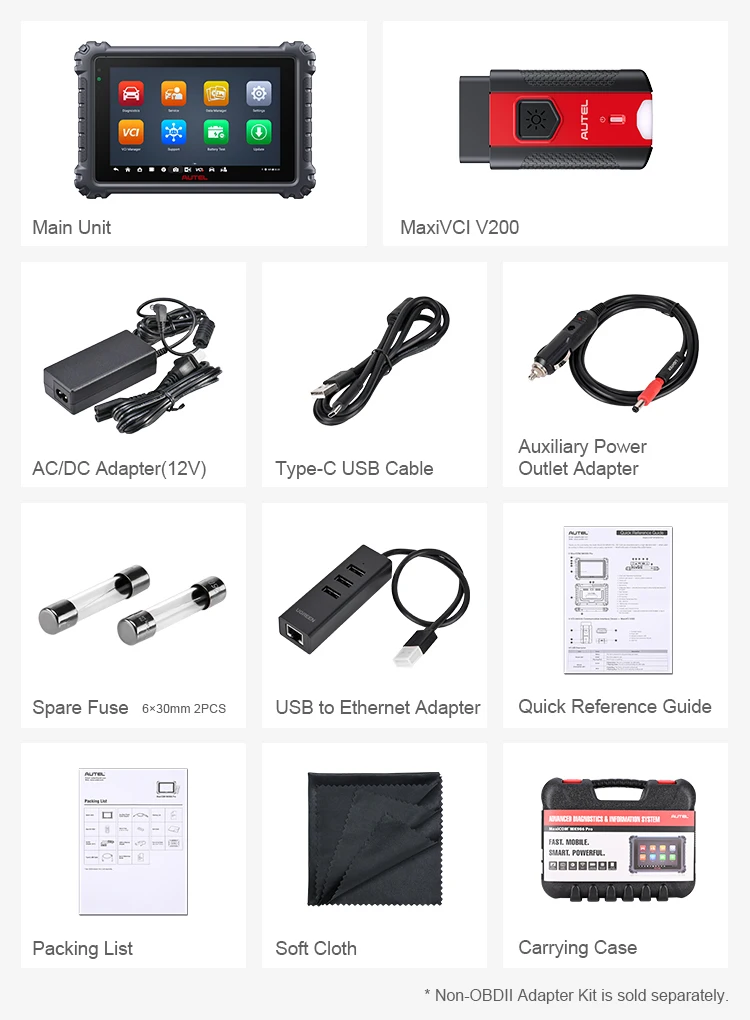

■ MK906PRO Package List

Main Unit
MaxiVCI V200
AC/DC Adapter(12V)
Type-C USB Cable
Auxiliary Power Outlet Adapter
Spare Fuse(6*30mm 2pcs)
USB to ethernet Adapter
Quick Reference
Packing List
Soft Cloth
Carrying Case
